Noise & Vibration Monitoring Equipment

Al Ghalowa contributes to reduce noise and vibrations to levels complying with regulations or set out in sustainable development strategies with its noise monitoring equipment. We are aimed at the industrial sector, towns, transportation, the public works and construction sector, wind power and the leisure industry. Al Ghalowa offers a complete range of products and services dedicated to noise and vibration measurement, assessment and monitoring. This includes data acquisition and processing solutions via simple and effective web interfaces. Operational staff can, therefore, focus on data analysis and decision-making.

  • Portable Noise Meters (Class 1 and Class 2): Leq, Lmin, Lmax, Lpk, SPL,A/B/C/Z weighting, 1/1 and 1/3 octave bands
  • Stationary Noise Monitoring Network: Monitoring station with built-in modem and GPS

SVAN 977

The SVAN 977C is a Class 1 Sound and Vibration meter designed for occupational and environmental measurement applications.The meter is a successor of SVAN 977A offering new 1/2” microphone MK255 providing designed for acoustical measurements in research and development and also for industrial use. lt is designed and very carefully constructed to ensure excellent long-time stability of the electroacoustical parameters.The built-in Bluetooth® interface together with smart-phone applications like Building Acoustics App and SvanMobile, extends measurement capabilities with all the features offered by smartphones including text/voice comments, photo, video, GPS position etc.The SVAN 977C kit consists of SVAN   977C Class 1 sound & vibration level meter with a detachable preamplifier SV 12L and high quality MK255 microphone. Each SVAN     977C has its factory calibration certificate and 36 months warranty card

——————————————————————————————————————–

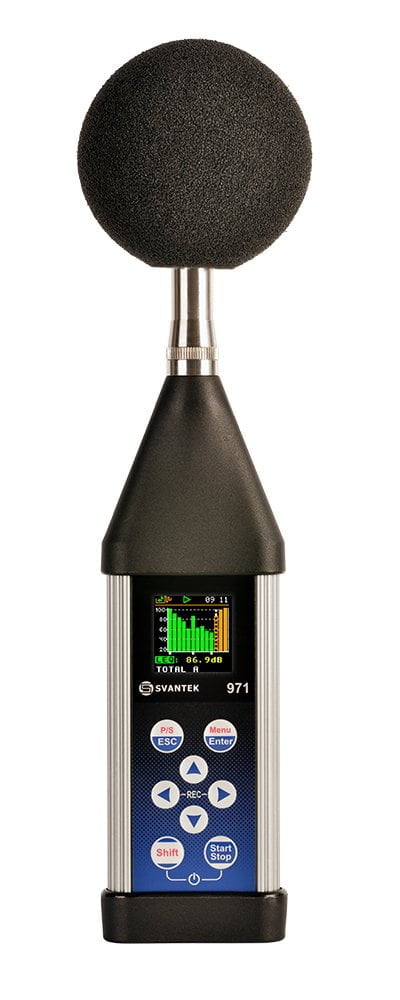

SVAN 971

SVAN 971 Class 1 Sound Level Meter is an extremely small instrument with options for 1/1 & 1/3 octave analysis. The instrument brings unprecedented state of the art technology to a SLM of this size.The user interface makes both configuration and measurement easier than ever before. For those who don’t have time to work with measurement settings, SVAN 971 offers extremely simple operational mode with Start/Stop. This innovation makes the SVAN 971 an ideal choice for many applications including industrial hygiene noise, short term environmental noise, acoustic consultants, technical engineers and general noise measurements. Another exceptional feature is built-in self-vibration monitoring providing information about level of vibration that influences the measurement results.

The SVAN 971 provides broadband results with all required weighting filters plus 1/1 octave & 1/3 octave band filters. It also offers an incredible time history logging (capability providing broad band results and spectra with adjustable double (long and short) logging steps). Triggered audio recording is also available whilst logging complete functionality.

The instrument can be easily calibrated in the field using an acoustic calibrator. Insertion of the microphone into a calibrator automatically activates the calibration process and the calibration history is automatically logged. Data is stored on a μSD card and can be easily downloaded to a PC using the provided SvanPC++ software over either USB or RS 232 interfaces. New PC software Supervisor will help SVAN 971 owners to organize data from number of measurements and create measurement reports in a quicker and more efficient way than ever before.

——————————————————————————————————————–

SVAN 979

The SVAN 979 Class 1 Sound & Vibration Analyzer is our flagship device. Your first impression will be the amazing OLED display which features excellent visibility in all light conditions. The instrument’s lightweight and durable aluminium housing not only gives a sense of a firm grip but also protects the valuable electronic device from damage and any influence from electromagnetic interference.

——————————————————————————————————————–

SV 104IS

The SV 104IS is the intrinsically safe version of the revolutionary personal noise dosimeter, the SV 104. Both instruments offer a new approach to occupational health and safety noise monitoring presenting features such as 1/1 octave band real-time analysis and audio events recording functions which are a new quality in an instrument of this size. All results are clearly displayed on the amazing OLED screen which offers excellent visibility even in full daylight or darkness.

——————————————————————————————————————–

SV 102+

SV 102+ Dual Channel Noise Dosimeter replaces our ground breaking SV 102. It has been designed for the accurate measurement of noise exposure to ISO 9612 and MIRE (microphone in real ear) measurements to ISO 11904-1..

——————————————————————————————————————–

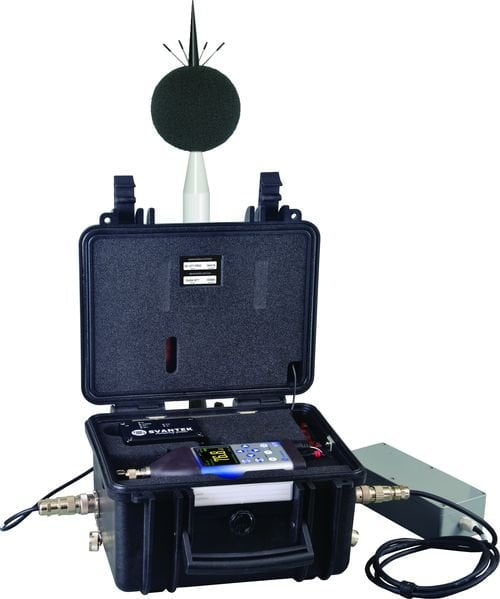

SV 279

SV 279 PRO is an outdoor monitoring system based on SVAN 979 Class 1 sound level meter. The IP 65-rated case contains a lead-acid battery which operating time can be easily extended by connecting an external battery or solar panel. The intelligent charging unit enables use of a solar panel without expensive controllers and heavy batteries. The case is fitted with very robust, waterproof connectors (military standard) and is supplied with an IP 65 external power supply.The light-weight outdoor microphone kit can be easily installed on a mast with standard mounting threads. All accessories fit conveniently into a second carrying case. The system provides broad-band results such as Leq, Max, Min and Peak with all standard weighting filters together with an incredible time-history logging feature with two adjustable logging steps.The broad-band results can be recorded in three acoustic profiles which enable measurements to be taken with 3 different filters (e.g. A, C, Z) as well as 3 different detector time constants (e.g. Fast, Slow, Impulse). The SVAN 979 can be easily removed from the case and used as a hand-held sound level meter.The monitoring station uses the 3G modem for the remote communication with Internet. SvanNET, the relay server, supports the connection between PC and station.

The SvanNET allows the usage of the system with all types of SIM cards, regardless if they have public or private IP. Additionally, it gives an access to a status of monitoring stations over a mobile phone or tablet.
